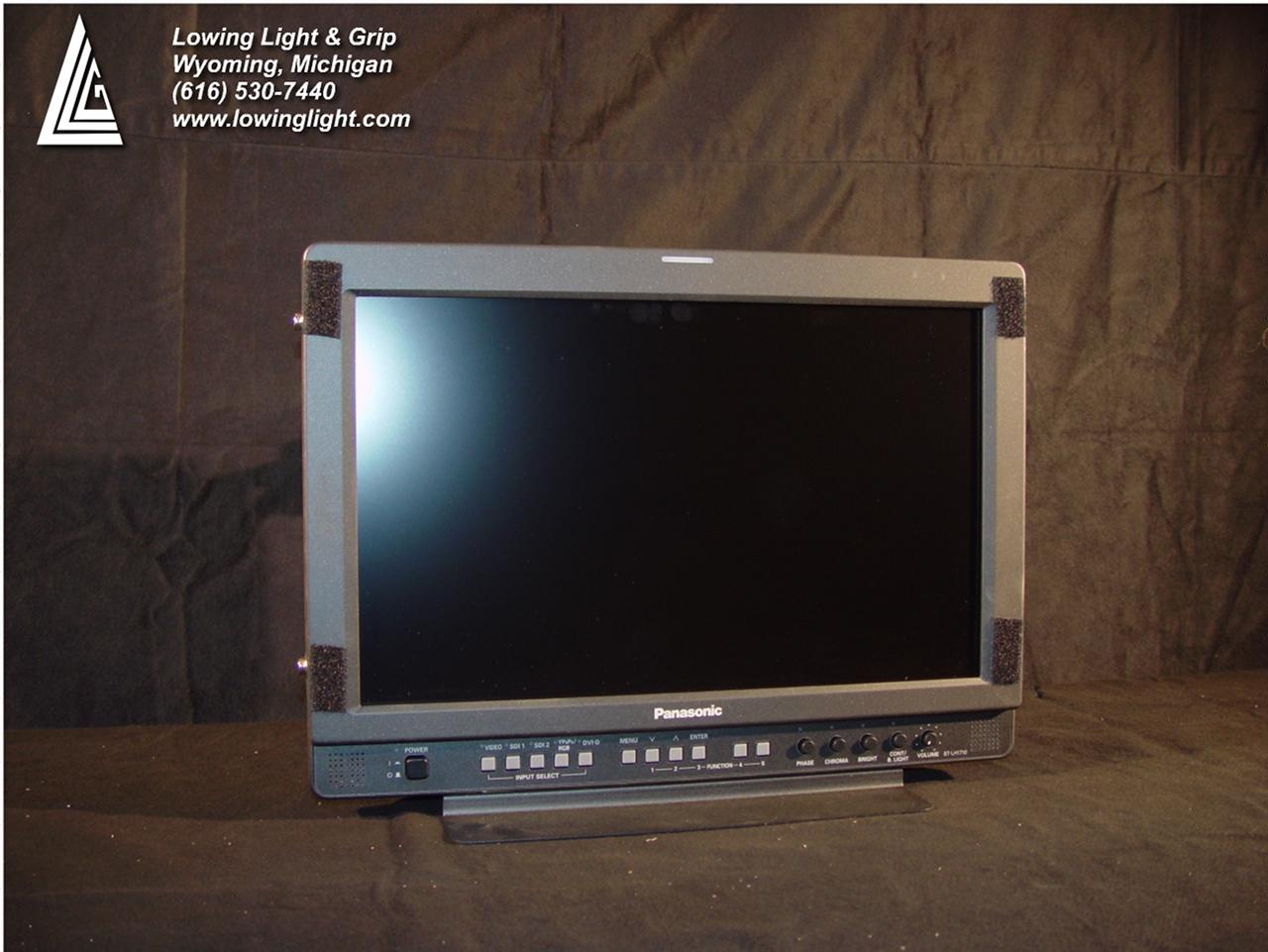

Panasonic BT-LH1710 17" Monitor Overview

The LH1710 incorporates the latest panel and image processing technology to provide higher contrast, improved black levels, and more functionality, at a price that fits your budget. The LH1710's new 1280 x 768 In-Plane Switching (IPS) panel delivers broadcast- quality video reproduction with 10-bit image processing for improved color performance. The monitor's newly-designed image processing engine has a 3D look-up table (LUT) that calibrates it to reproduce accurate images according to the specific color standard selected.

The LH1710 adds a wider range of essential functions including built-in embedded audio support, vectorscope, pixel-to-pixel display, cross hatch overlay, audio level meters (up to 8 channels), time code, headphone jack and five function buttons, in addition to the built-in waveform monitor that many professionals found invaluable in the BT-LH1700W.

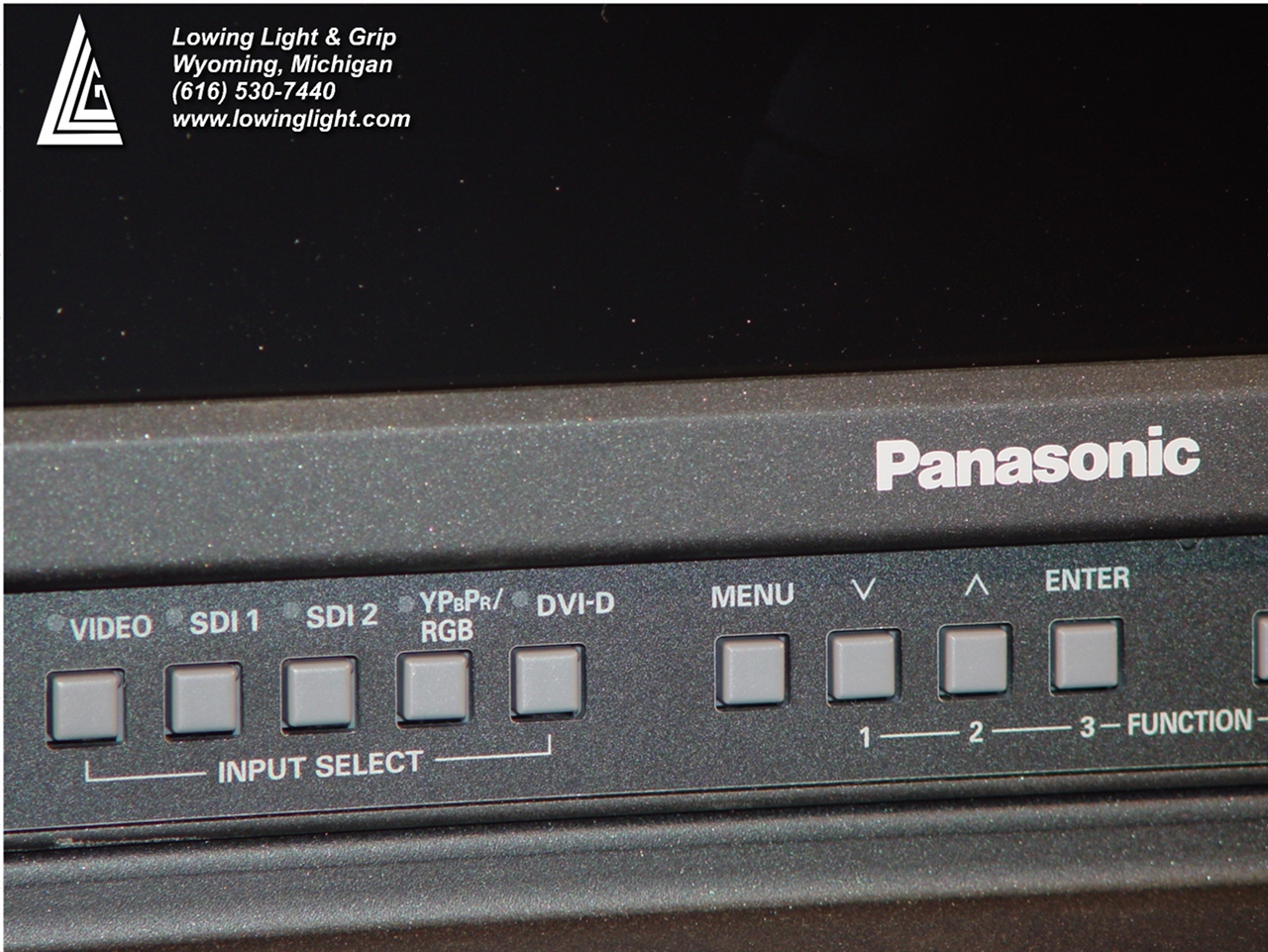

The LH1710 is equipped with two HD-SDI/SDI auto-switching inputs with a switched output, and a DVI-D input for connection to digital devices with a DVI-D output.

  • 1280 x 768 Resolution (WXGA)
  • AC/DC operation for field or studio use
  • Cine-gamma (Film-Rec) compensation function for use with cameras including the Panasonic AJ-HPX3700 and AJ-HPX2700 P2 HD VariCam camcorders and the AJ-HDC27 VariCam HD Cinema Camera
  • Waveform monitor and vectorscope displays all picture lines (via HD-SDI / SDI input)
  • Audio level meters can be displayed as 2-ch , 4-ch , 8-ch, or shut off completely (+ 0 dB limit mark (on/off))
  • Displays a variety of time code information: Time Code (SDI & HD-SDI) LTC (Linear Time Code), VITC (Vertical Interval Time Code), LUB (User Bits among Linear Time Code), VUB (User Bits among Vertical Time Code)
  • Additional features include built-in embedded audio decoder (via speakers and headphone jack), RS-232C and GPI remote control terminals and tally indicators (Red/Green/Amber)
  • Marker and blue-only function

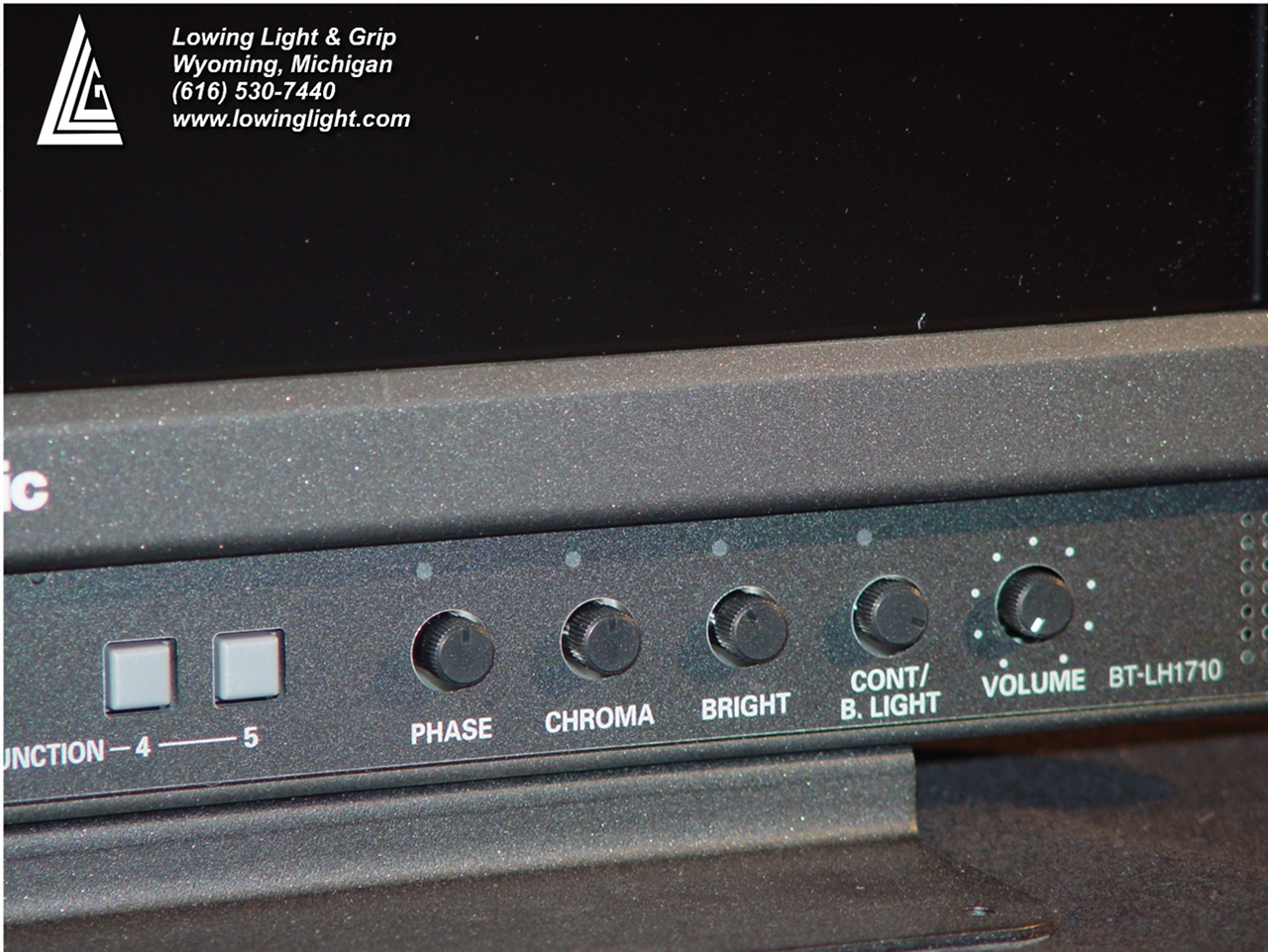

  • Five assignable function buttons for quick and easy access to features
  • Wide 176° horizontal and vertical viewing angle
  • Durable, die cast aluminum frame
  • Quiet operation (No cooling fan)
  • Headphone jack and built-in stereo speakers
  • VESA mounting capability and desk stand included

Panasonic BT-LH1710 17" Monitor Specifications

  • Power Requirement:
      AC 100 V to 240 V 50/60 Hz, 0.6 A to 0.3 A
      DC 12 V (11 V to 17 V) 4.0 A
  • Dimensions (WxHxD):
      430 mm x 323.5 mm x 198mm (16-15/16" x 12-3/4" x 7-13/16") - Including stand
      430 mm x 309 mm x 81.1mm (16-15/16" x 12-3/16" x 3-1/4") - Main unit only; not including stand
  • Weight:
      7.1 kg (15.7 lbs) - Including stand
      6.2 kg (13.7 lbs) - not including stand
  • Operating Temperature:
      +5°C to +35°C (41°F to 95°F)
  • Operating Humidity:
      20 % to 80 % (non-dew)
  • Storage Temperature:
      —20°C to +60°C (—4°F to 140°F)
  • LCD Panel Size:
      17.0 inch
  • Aspect Ratio:
  • Resolution:
      1,280 x 768 pixels (WXGA)
  • Display colors:
      Approx. 16,770,000 colors
  • Viewing Angle:
      178° (both horizontal and vertical)
  • Video Input/Output:

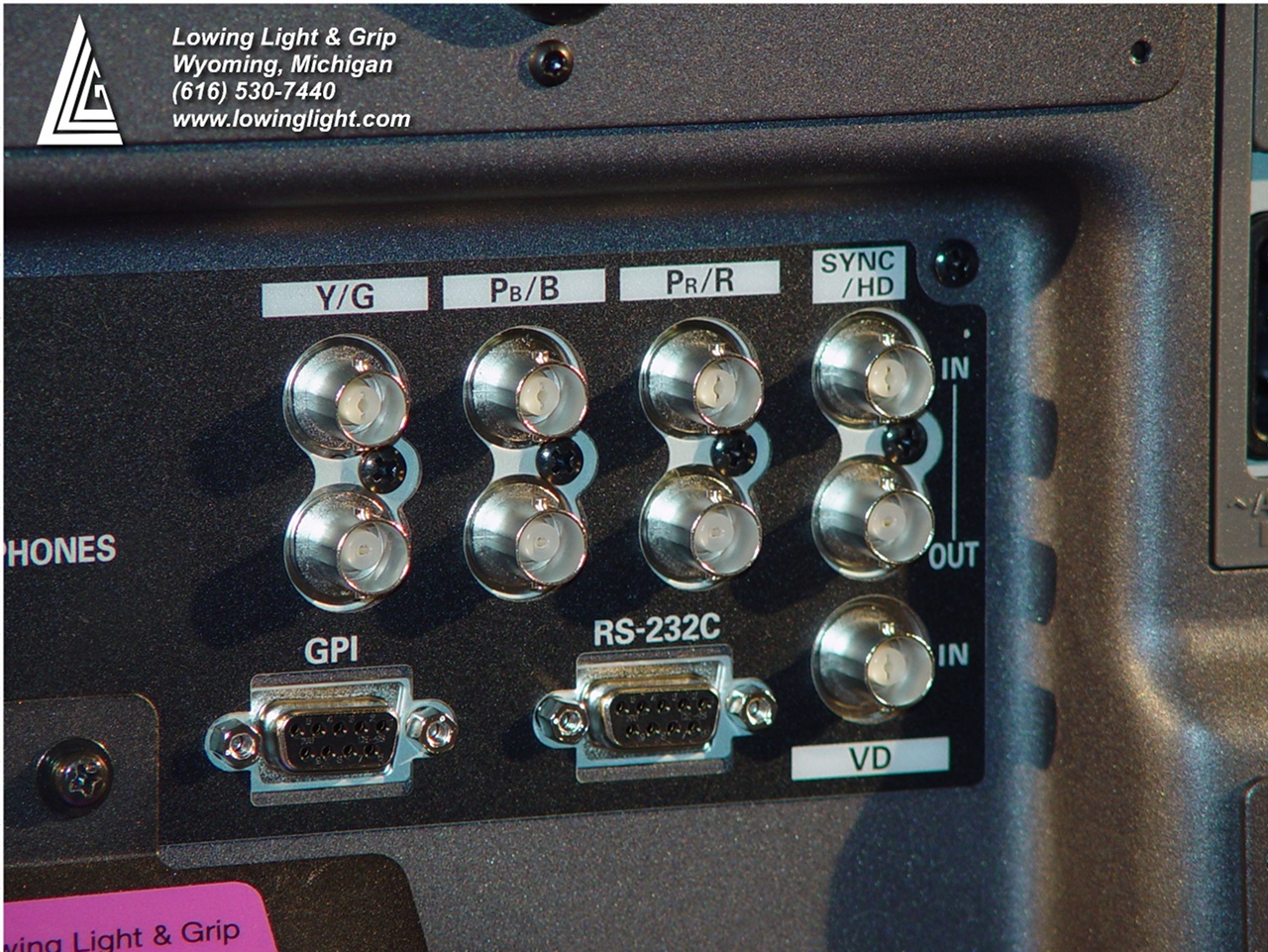

      Video: BNC x 2 (with through-out connector)
      Y/PB/PR. RGB: BNC x 6 (with through-out connector x 3)
      SYNC/HD: BNC x 2 (with through-out connector x 1)
      VD: BNC x 1

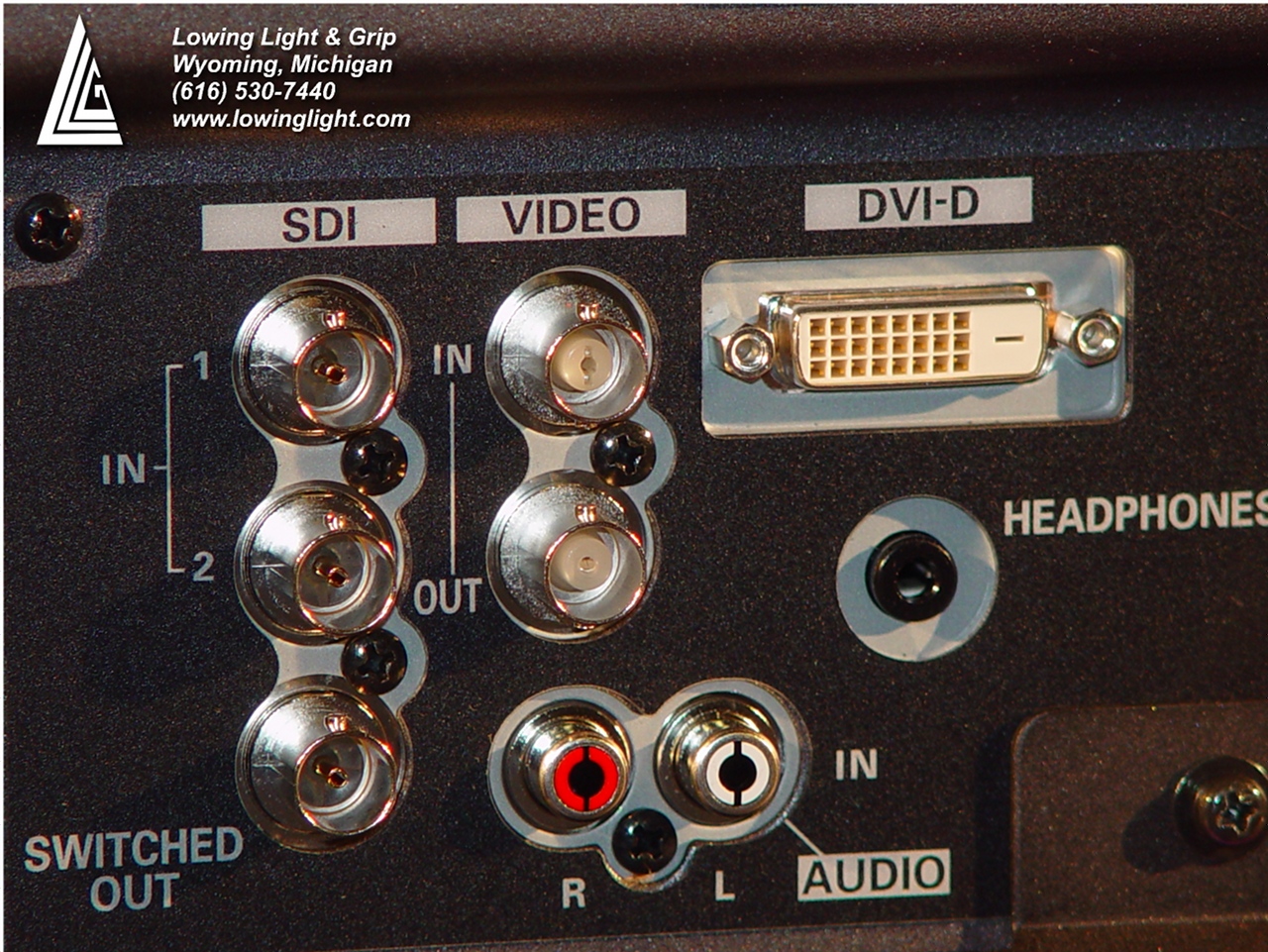

      SDI: BNC x 3 (switched-out connector x 1)
      DVI-D (HDCP): DVI-D x 1
      Vertical frequency: 50.0 Hz to 60.0 Hz
      Horizontal frequency: 31.5 KHz to 67.5 KHz
      Dot clock: 25 MHz to 165 MHz
  • Audio input:
      Pinjack x 2 (stereo)
  • Headphone Output:
      M3 stereo mini jack x 1
  • Remote:
      GPI: D-SUB, 9 pin RS-232C: D-SUB, 9 pin
  • External DC Power Input:
      XLR, 4pin
  • Signal Level:
      SYNC signal level: 0.3 Vp-p to 4.0 Vp-p
      HD/VD Signal level: TTL level
      Audio input signal level: 0.5 Vrms
      Speaker output: 0.5 W + 0.5 W
      Head phone output: 32 ?, Variable Level
      SDI Embedded Audio:
      HD-SDI : SMPTE299M standard, 48 kHz, 8CH - synchronous/asynchronous
      SD-SDI : SMPTE272M standard, 48 kHz, 4CH - synchronous
  • Accessories:
      Supplied: Power Cord Hook, Screw
      Optional: Rack mount adaptor, Wall Mount Adaptor, Protective Panel
